Product Details

BiPAC 5700

  • 5G NR Outdoor VPN Router
The BiPAC 5700 integrates the newest 5G NR(sub-6G) module and high-performance dual-polarized MIMO antenna, making it the fastest commercially available outdoor router. BiPAC 5700 is a high performance, robust connectivity, and a reliable platform, the ideal solution for Fixed Wireless Access, last-mile access, residences, urban areas, and the underserved.
  • Key Features & Benefits
  • Features & Specifications

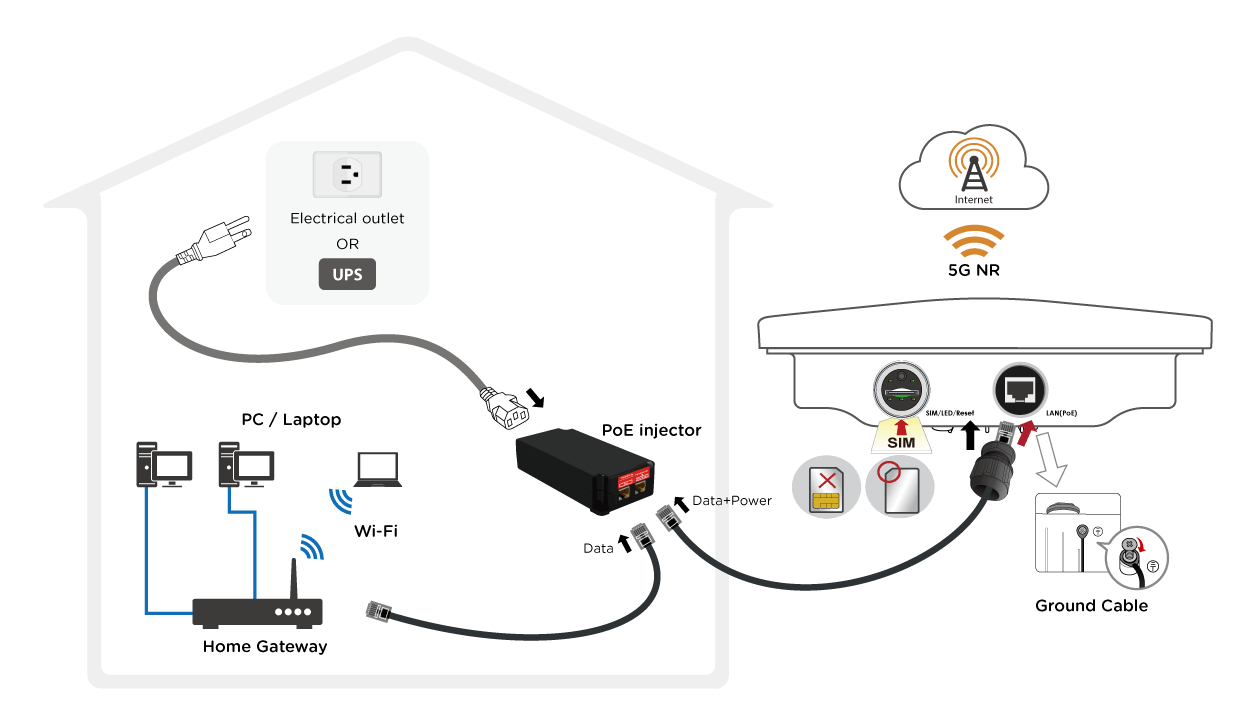

  • Application Diagram
  • Ultra High Speed
  • Fixed Wireless Broadband
  • An Alternative Solution for Last Mile Access
  • Mission-Critical & Performance Intensive Networks
  • Industrial Connectivity Applications
  • Suburban and Rural Environments

Key Features


High Performance

  • High performance 5G NR(sub-6G) module
  • Advanced IP networking functionalities including Router and IP Pass-Through modes


Dual-Polarized MIMO Antenna for Maximum Bandwidth and Service Coverage

  • Embedded dual-polarized antenna
  • Optimize antenna design per band


Secure VPN Connections

  • IPSec, OpenVPN, GRE, PPTP, L2TP


Central Management System

  • CWMP(TR-069)
  • Billion CMS


Designed for Challenging / Rugged Environments

  • IP67 hardened enclosure with industrial-grade components
  • Designed for the toughest industrial environments
  • Rugged compact design deploys easily in space constrained areas
  • Electrostatic discharge (ESD) & Surge protect


Lightweight and Compact Design

  • Easily installed by single person
  • Supports Power over Ethernet (PoE)


Package Includes PoE Injector and Mounting Kit




■ Ultra High Speed Mobile Wireless Communication

  • Embedded high performance 5G NR(sub-6G) module*1
  • Embedded dual-polarized MIMO antenna


  Embedded 5G NR

  • Frequency bands and data rare depend on equipped 5G NR(sub-6G) module*1


  ■ Network Protocols and Features

  • IPv4, IPv6, IPv4/ IPv6 dual stack*2
  • Dual APN*3
  • Keep Alive
  • IP Pass-Through
  • NAT, Virtual Server and DMZ
  • Static Routing, Dynamic Routing (RIP-1/2, OSPF, BGP)
  • SNTP, DNS relay and DDNS
  • Universal Plug & Play (UPnP)
  • Supports DHCP server/ client


 ■  Firewall

  • Built-in NAT firewall
  • Stateful Packet Inspection (SPI)
  • Prevents DoS attacks including Land Attack, Ping of Death, etc.
  • Access Control
  • IP Filtering, MAC Filtering, URL Filtering
  • VPN pass-through


  ■  Secure VPN Connections

  • IPSec
  • PPTP
  • L2TP
  • GRE
  • OpenVPN


  ■ Global Navigation Satellite System (GNSS) *2

  • Embedded multi-GNSS engine for GPS or GLONASS system


   ■ Management

  • Password protection for system management
  • Web-based GUI for remote and local management
  • Firmware upgrade and configuration data upload and download via Web GUI
  • TR-069(CWMP)*2, Billion CMS*2, SNMP
  • 5G NR Usage Allowance
  • Syslog monitoring
  • Physical layer/protocol diagnostic test tool


Hardware Specifications

  ■ Physical Interface

  • One(1) Gigabit Ethernet Interfaces with IEEE802.3at compliant PoE P.D
  • One(1) Mini-SIM(2FF) slot (for the SIM from Telco/ISP)
  • Reset Button
  • LED Indicators: Power/Boot, LAN(PoE), Internet, Signal Strength, and GNSS*2


  ■ Physical Specifications

  • Dimensions: 257mm x 227 mm x 91mm (8.5" x 7.5" x 3.0")
  • Weight: 1.81kg (4lbs)
  • IP-67 grade enclosure


  ■ Operating Requirements

  • Operating: -40°C to 60°C (-40°F to 140°F)


  ■ Surge/ESD Protections

  • Surge Protection: K.21 common mode ±6KV
  • ESD Protection: Contact: ±8KV / Air: ±15KV


* Notes:

  1. The 5G NR is dependent on your local service provider.
  2. Only upon request for Telco / ISP tender projects.
  3. Dual APN is not supported on some specific SKU , please confirm it with our sales.
  4. Specifications in this datasheet are subject to change without prior notice.
WAN Interface
Hardware Interface
SIM slot ● (x1)
Gigabit Ethernet ● (x1)
802.11n (2.4GHz) -
802.11ac (5GHz) -
Dual APN
Dual-WAN (Failover/Failback) -
Dual-WAN (Load balance) -
IPv4 / IPv6
Hotspot -
Hardware Specifications
Physical Specifications 257mm x 227 mm x 91mm (8.5" x 7.5" x 3.0")
Power Requirements PoE
Operating Environment -40°C to 60°C (-40°F to 140°F)
